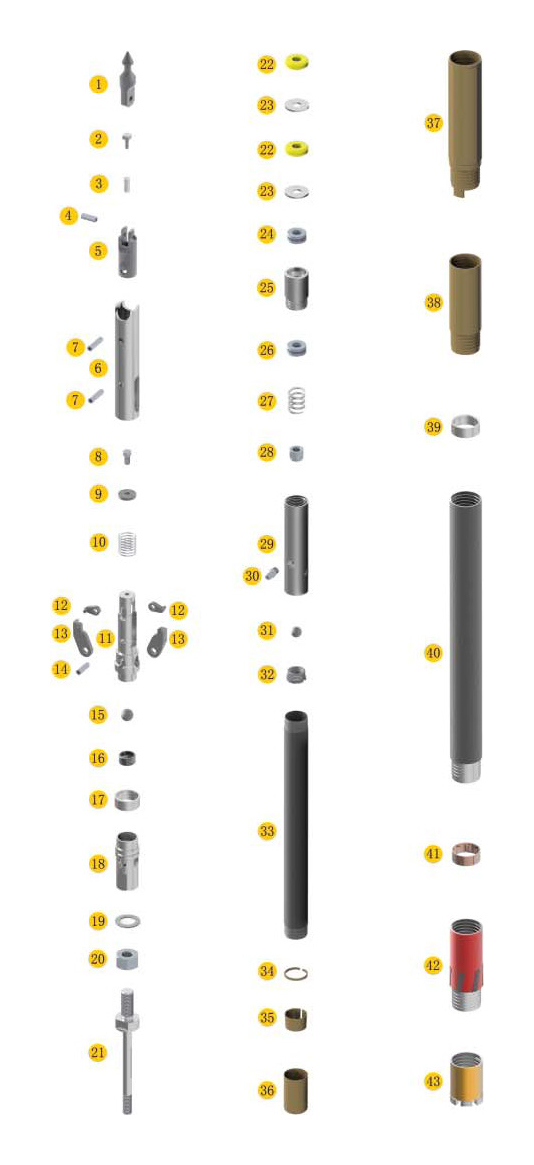

图号 NO.
|
编号
Code
|
名称 Description
|
数量 Qty
|
|
1
|
NC-01
|
捞矛头 Spearhead Point
|
1
|
|
2
|
NC-02
|
定位压块 Detent Plunger
|
1
|
|
3
|
NC-03
|
捞矛头弹簧 Compression Spring
|
1
|
|
4
|
NC-04
|
弹性圆柱销 10x28 Spring Pin 10x28
|
1
|
|
5
|
NC-05
|
捞矛座 Spearhead Base
|
1
|
|
6
|
NC-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
NC-07
|
弹性圆柱销 12x50 Spring Pin 12x50
|
2
|
|
8
|
NC-08
|
六角头螺栓 3/8"-16UNCx3/4' Bolt
|
1
|
|
9
|
NC-09
|
压板Washer
|
1
|
|
10
|
NC-10
|
弹卡银弹簧 Latch Compression Spring
|
1
|
|
11
|
NC-11
|
弹卡架 Upper Latch Body
|
1
|
|
12
|
NC -12
|
限位块Link
|
2
|
|
13
|
NC-13
|
弹卡银Latch
|
2
|
|
14
|
NC-14
|
弹性圆柱销 12x40 Spring Pin 12x40
|
1
|
|
15
|
NC-15
|
钢球伞22 Stainless Steel Ball <)>22
|
1
|
|
16
|
NC-16
|
钢球架 Indicator Bushing
|
1
|
|
17
|
NC-17
|
悬挂环 Landing Shoulder
|
1
|
|
18
|
NC-18
|
单向阀 Check Valve Body
|
1
|
|
19
|
NC-19
|
防松垫圈 1 1/8" Washer 1 1/8" Nord-Lock
|
1
|
|
20
|
NC-20
|
六角螺母 1 1/8"-7UNC Hex Nut
|
1
|
|
21
|
NC-21
|
连接轴Spindle
|
1
|
|
22
|
NC-22
|
报倌胶圈 Shut-off Valve Hard
|
2
|
|
23
|
NC-23
|
隔片 Valve Adjusting Washer
|
2
|
|
24
|
NC-24
|
推力轴承 Thrust Bearing
|
1
|
|
25
|
NC-25
|
滑套(轴承座)Spindle Bushing
|
1
|
|
26
|
NC - 26
|
推力轴承 Thrust Bearing
|
1
|
|
27
|
NC-27
|
弹簧 Compression Spring
|
1
|
|
28
|
NC-28
|
自锁螺母3/4--10UNC Lock Nut
|
1
|
|
29
|
NC-29
|
弹簧套 InnerTube Cap
|
1
|
|
30
|
NC-30
|
压注油杯 Hydraulic Grease Fitting
|
1
|
|
31
|
NC-31
|
钢球中 φ22 Stainless Steel Ball φ22
|
1
|
|
32
|
NC-32
|
单向阀 Check Valve Body
|
1
|
|
33
|
NC - 33
|
内管 InnerTube
|
1
|
|
34
|
NC-34
|
挡圈 Stop Ring
|
1
|
|
35
|
NC - 35
|
卡簧 Core Lifter
|
1
|
|
36
|
NC-36
|
卡簧座 Core Lifter Case
|
1
|
|
37
|
NC - 37
|
弹卡挡头 Locking Coupling
|
1
|
|
38
|
NC - 38
|
弹卡室 Adaptor Coupling
|
1
|
|
39
|
NC-39
|
座环 Landing Ring
|
1
|
|
40
|
NC-40
|
外管 OuterTube
|
1
|
|
41
|
NC-41
|
扶正环 InnerTube Stabilizer
|
1
|
|
42
|
NC-42
|
扩孔器 Reaming Shell
|
1
|
|
43
|
NC-43
|
钻头 Diamond Core Bit
|
1
|
