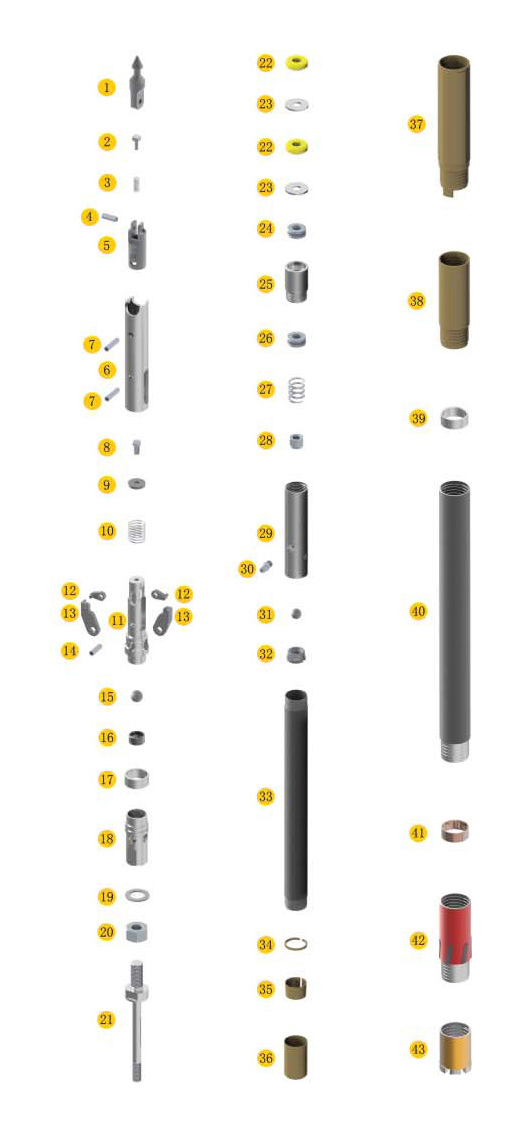

图号 NO.
|
编号
Code
|
名称 Description
|
数量 Qty
|
|
1
|
NTW-01
|
捞矛头 Spearhead Point
|
1
|
|
2
|
NTW-02
|
定位压块 Detent Plunger
|
1
|
|
3
|
NTW-03
|
捞矛头弹簧 Compression Spring
|
1
|
|
4
|
NTW-04
|
弹性圆柱销 10x28 Spring Pin 10x28
|
1
|
|
5
|
NTW-05
|
捞矛座 Spearhead Base
|
1
|
|
6
|
NTW-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
NTW-07
|
弹性圆柱销 10x40 Spring Pin 10x40
|
2
|
|
8
|
NTW-08
|
六角头螺栓 3/8"-16UNCx3/4" Bolt
|
1
|
|
9
|
NTW-09
|
压板Washer
|
1
|
|
10
|
NTW-10
|
弹卡钳弹簧 Latch Compression Spring
|
1
|
|
11
|
NTW-11
|
弹卡架 Upper Latch Body
|
1
|
|
12
|
NTW-12
|
限位块Link
|
2
|
|
13
|
NTW-13
|
弹卡钳Latch
|
2
|
|
14
|
NTW-14
|
弹性圆柱销 10x32 Spring Pin 10x32
|
1
|
|
15
|
NTW-15
|
钢球 φ22 Stainless Steel Ball φ 22
|
1
|
|
16
|
NTW-16
|
钢球架 Indicator Bushing
|
1
|
|
17
|
NTW-17
|
悬挂环 Landing Shoulder
|
1
|
|
18
|
NTW-18
|
单向阀 Check Valve Body
|
1
|
|
19
|
NTW-19
|
防松垫圈7/8" Washer7/8" Nord-Lock
|
1
|
|
20
|
NTW-20
|
六角螺母7/8"-9UNC Hex Nut
|
1
|
|
21
|
NTW-21
|
连接轴Spindle
|
1
|
|
22
|
NTW-22
|
报信胶圈 Shut-off Valve Hard
|
2
|
|
23
|
NTW-23
|
隔片 Valve Adjusting Washer
|
2
|
|
24
|
NTW-24
|
推力轴承 Thrust Bearing
|
1
|
|
25
|
NTW-25
|
滑套(轴承座)Spindle Bushing
|
1
|
|
26
|
NTW-26
|
推力轴承 Thrust Bearing
|
1
|
|
27
|
NTW-27
|
弹簧 Compression Spring
|
1
|
|
28
|
NTW-28
|
自锁螺母3/4"-10UNC Lock Nut
|
1
|
|
29
|
NTW-29
|
弹簧套 Inner Tube Cap
|
1
|
|
30
|
NTW-30
|
压注油杯 Hydraulic Grease Fitting
|
1
|
|
31
|
NTW-31
|
钢球 φ22 Stainless Steel Ball φ 22
|
1
|
|
32
|
NTW-32
|
单向阀 Check Valve Body
|
1
|
|
33
|
NTW-33
|
内管 InnerTube
|
1
|
|
34
|
NTW-34
|
挡圈 Stop Ring
|
1
|
|
35
|
NTW-35
|
卡簧 Core Lifter
|
1
|
|
36
|
NTW-36
|
卡簧座 Core Lifter Case
|
1
|
|
37
|
NTW-37
|
弹卡挡头 Locking Coupling
|
1
|
|
38
|
NTW-38
|
弹卡室 Adaptor Coupling
|
1
|
|
39
|
NTW-39
|
座环 Landing Ring
|
1
|
|
40
|
NTW-40
|
外管 Outer Tube
|
1
|
|
41
|
NTW-41
|
扶正环 InnerTube Stabilizer
|
1
|
|
42
|
NTW-42
|
矿孔器 Reaming Shell
|
1
|
|
43
|
NTW-43
|
钻头 Diamond Core Bit
|
1
|
