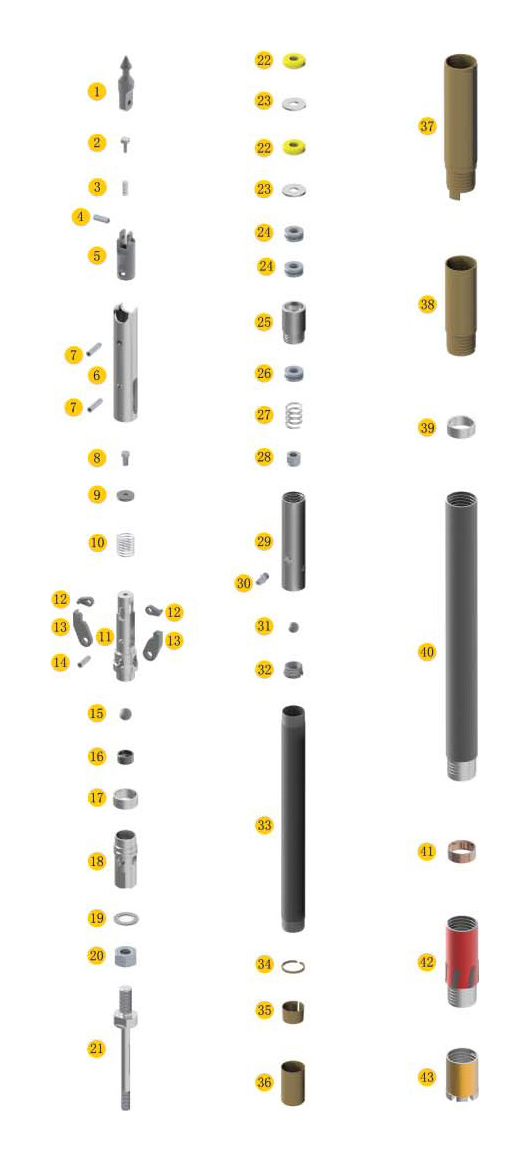

图号 NO.
|
编号
Code
|
名称 Description
|
数量 Qty
|
|
1
|
HC-01
|
捞矛头 Spearhead Point
|
1
|
|
2
|
HC-02
|
定位压块 Detent Plunger
|
1
|
|
3
|
HC-03
|
捞矛头弹簧 Compression Spring
|
1
|
|
4
|
HC-04
|
弹性圆柱销 10x28 Spring Pin 10x28
|
1
|
|
5
|
HC-05
|
捞矛座 Spearhead Base
|
1
|
|
6
|
HC-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
HC-07
|
弹性圆柱销 12x70 Spring Pin 12x70
|
2
|
|
8
|
HC-08
|
六角头螺栓3/8"-16UNCx3/4"- Bolt
|
1
|
|
9
|
HC-09
|
压板Washer
|
1
|
|
10
|
HC-10
|
弹卡银弹簧 Latch Compression Spring
|
1
|
|
11
|
HC-11
|
弹卡架 Upper Latch Body
|
1
|
|
12
|
HC-12
|
限位块Link
|
2
|
|
13
|
HC-13
|
弹卡钳Latch
|
2
|
|
14
|
HC-14
|
弹性圆柱销 12x55 Spring Pin 12x55
|
1
|
|
15
|
HC-15
|
钢球 φ 22 Stainless Steel Ball φ 22
|
1
|
|
16
|
HC-16
|
钢球架 Indicator Bushing
|
1
|
|
17
|
HC-17
|
悬挂环 Landing Shoulder
|
1
|
|
18
|
HC-18
|
单向阀 Check Valve Body
|
1
|
|
19
|
HC-19
|
防松垫圈 1 1/4" Washer 1 1/4" Nord-Lock
|
1
|
|
20
|
HC-20
|
六角螺母 1 1/4"--7UNC Hex Nut
|
1
|
|
21
|
HC-21
|
连接轴Spindle
|
1
|
|
22
|
HC-22
|
报信肢圈 Shut-off Valve Hard
|
2
|
|
23
|
HC-23
|
隔片 Valve Adjusting Washer
|
2
|
|
24
|
HC-24
|
推力轴承 Thrust Bearing
|
2
|
|
25
|
HC-25
|
滑套(轴承座)Spindle Bushing
|
1
|
|
26
|
HC-26
|
推力轴承 Thrust Bearing
|
1
|
|
27
|
HC-27
|
弹簧 Compression Spring
|
1
|
|
28
|
HC-28
|
自锁螺母 1"-8UNC Lock Nut
|
1
|
|
29
|
HC-29
|
弹簧套 InnerTubeCap
|
1
|
|
30
|
HC-30
|
压注油杯 Hydraulic Grease Fitting
|
1
|
|
31
|
HC-31
|
钢球 φ22 Stainless Steel Ball φ22
|
1
|
|
32
|
HC-32
|
单向阀 Check Valve Body
|
1
|
|
33
|
HC-33
|
内管 InnerTube
|
1
|
|
34
|
HC-34
|
挡圈 Stop Ring
|
1
|
|
35
|
HC-35
|
卡簧 Core Lifter
|
1
|
|
36
|
HC-36
|
卡簧座 Core Lifter Case
|
1
|
|
37
|
HC - 37
|
弹卡挡头 Locking Coupling
|
1
|
|
38
|
HC-38
|
弹卡室 Adaptor Coupling
|
1
|
|
39
|
HC-39
|
座环 Landing Ring
|
1
|
|
40
|
HC-40
|
外管 Outer Tube
|
1
|
|
41
|
HC-41
|
扶正环 InnerTube Stabilizer
|
1
|
|
42
|
HC-42
|
扩孔器 Reaming Shell
|
1
|
|
43
|
HC-43
|
钻头 Diamond Core Bit
|
1
|
