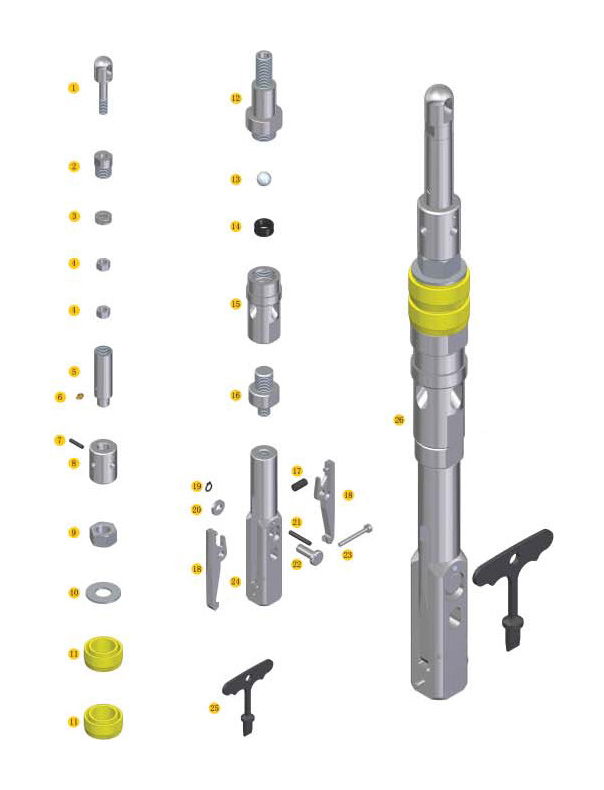

CQU系列（打捞器）
|
图号 NO.
|
编号
Code
|
名称 Description
|
数量 Qty
|
|
1
|
CQU-01
|
吊环螺栓Eye Bolt
|
1
|
|
2
|
CQU-02
|
压盖 Cable Collar
|
1
|
|
3
|
CQU-03
|
轴承 Bearing
|
1
|
|
4
|
CQU-04
|
六角螺母Hex Nut
|
2
|
|
5
|
CQU-05
|
旋转接头 Cable Swivel Body
|
1
|
|
6
|
CQU-06
|
压注油杯 Hydraulic Grease Fitting
|
1
|
|
7
|
CQU-07
|
销子 Spirol Shear Pin
|
1
|
|
8
|
CQU-08
|
阀座 Upper Over-Shot Body
|
1
|
|
9
|
CQU-09
|
六角螺母 Hex Nut
|
1
|
|
10
|
CQU-10
|
垫圈 Washer
|
1
|
|
11
|
CQU-11
|
活塞 Pump-ln Lip Seal
|
2
|
|
12
|
CQU-12
|
连接座 Seal Seat
|
1
|
|
13
|
CQU-13
|
钢球 Stainless Steel Ball
|
1
|
|
14
|
CQU-14
|
钢球架 Indicator Bushing
|
1
|
|
15
|
CQU-15
|
接头 Lower Latch Body
|
1
|
|
16
|
CQU-16
|
连接螺栓 Overshot Threaded Adaptor
|
1
|
|
17
|
CQU-17
|
弹簧 Compression Spring
|
1
|
|
18
|
CQU-18
|
打捞钩 Lifting Dog
|
2
|
|
19
|
CQU-19
|
挡圈 Retaining Ring
|
1
|
|
20
|
CQU-20
|
型片Washer
|
1
|
|
21
|
CQU-21
|
销 Pin
|
1
|
|
22
|
CQU-22
|
销 Pin
|
1
|
|
23
|
CQU-23
|
保险销 Safty Pin
|
1
|
|
24
|
CQU-24
|
榜钩架 Overshot Head
|
1
|
|
25
|
CQU-25
|
脱卡板手 Release Tool
|
1
|
|
26
|
CQU-26
|
打捞器 Overshot Assembly
|
1
|
|
