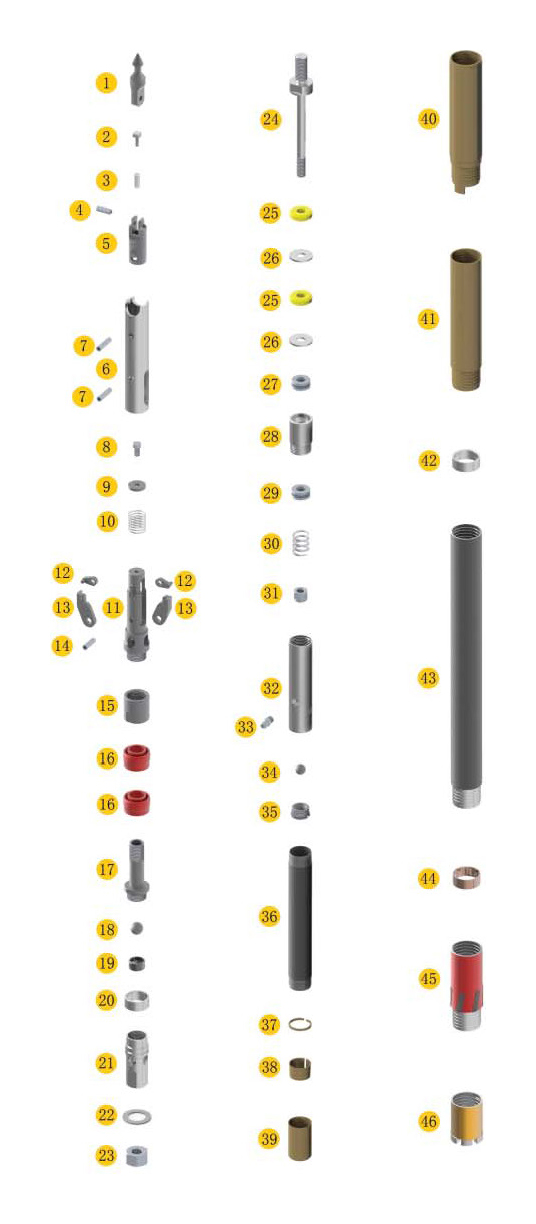

图号 NO.
|
编号
Code
|
名称 Description
|
数量 Qty
|
|
1
|
BQU-01
|
捞矛头 Spearhead Point
|
1
|
|
2
|
BQU-02
|
定位压块 Detent Plunger
|
1
|
|
3
|
BQU-03
|
捞矛头弹簧 Compression Spring
|
1
|
|
4
|
BQU-04
|
弹性圆柱销 10x28 Spring Pin 10x28
|
1
|
|
5
|
BQU-05
|
捞矛座 Spearhead Base
|
1
|
|
6
|
BQU-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
BQU-07
|
弹性圆柱销 10x40 Spring Pin 10x40
|
2
|
|
8
|
BQU-08
|
六角头螺栓3/8"-16UNCx3/4" Bolt
|
1
|
|
9
|
BQU-09
|
压板Washer
|
1
|
|
10
|
BQU-10
|
弹卡银弹簧 Latch Compression Spring
|
1
|
|
11
|
BQU-11
|
弹卡架 Upper Latch Body
|
1
|
|
12
|
BQU-12
|
限位块Link
|
2
|
|
13
|
BQU-13
|
弹卡钳Latch
|
2
|
|
14
|
BQU-14
|
弹性圆柱销 10x32 Spring Pin 10x32
|
1
|
|
15
|
BQU-15
|
转接头 Latch Body Coupler
|
1
|
|
16
|
BQU-16
|
活塞 Pump-in Lip Seal
|
2
|
|
17
|
BQU-17
|
活塞轴 Spindle of Pump-in Lip Seal
|
1
|
|
18
|
BQU-18
|
钢球 φ22 Stainless Steel Ball φ22
|
1
|
|
19
|
BQU-19
|
钢球架 Indicator Bushing
|
1
|
|
20
|
BQU-20
|
悬挂环 Landing Shoulder
|
1
|
|
21
|
BQU-21
|
单向阀 Check Valve Body
|
1
|
|
22
|
BQU-22
|
防松垫圈7/8" Washer7/8" Nord-Lock
|
1
|
|
23
|
BQU-23
|
六角螺母7/8"-9UNC Hex Nut
|
1
|
|
24
|
BQU-24
|
连接轴Spindle
|
1
|
|
25
|
BQU-25
|
报信胶圈 Shut-off Valve Hard
|
2
|
|
26
|
BQU-26
|
隔片 Valve Adjusting Washer
|
2
|
|
27
|
BQU-27
|
推力轴承 Thrust Bearing
|
1
|
|
28
|
BQU-28
|
滑套（轴承座）Spindle Bushing
|
1
|
|
29
|
BQU-29
|
推力轴承 Thrust Bearing
|
1
|
|
30
|
BQU-30
|
弹簧 Compression Spring
|
1
|
|
31
|
BQU-31
|
自锁螺母5/8"-11UNC Lock Nut
|
1
|
|
32
|
BQU-32
|
弹簧套 Inner Tube Cap
|
1
|
|
33
|
BQU-33
|
压注油杯 Hydraulic Grease Fitting
|
1
|
|
34
|
BQU-34
|
钢球 φ19 Stainless Steel Ball φ19
|
1
|
|
35
|
BQU-35
|
单向阀 Check Valve Body
|
1
|
|
36
|
BQU-36
|
内管 InnerTube
|
1
|
|
37
|
BQU-37
|
挡圈 Stop Ring
|
1
|
|
38
|
BQU-38
|
卡簧 Core Lifter
|
1
|
|
39
|
BQU-39
|
卡簧座 Core Lifter Case
|
1
|
|
40
|
BQU-40
|
弹卡挡头 Locking Coupling
|
1
|
|
41
|
BQU-41
|
弹卡室 Adaptor Coupling
|
1
|
|
42
|
BQU-42
|
座环 Landing Ring
|
1
|
|
43
|
BQU-43
|
外管 Outer Tube
|
1
|
|
44
|
BQU-44
|
扶正环 InnerTube Stabilizer
|
1
|
|
45
|
BQU-45
|
扩孔器 Reaming Shell
|
1
|
|
46
|
BQU-46
|
钻头 Diamond Core Bit
|
1
|
