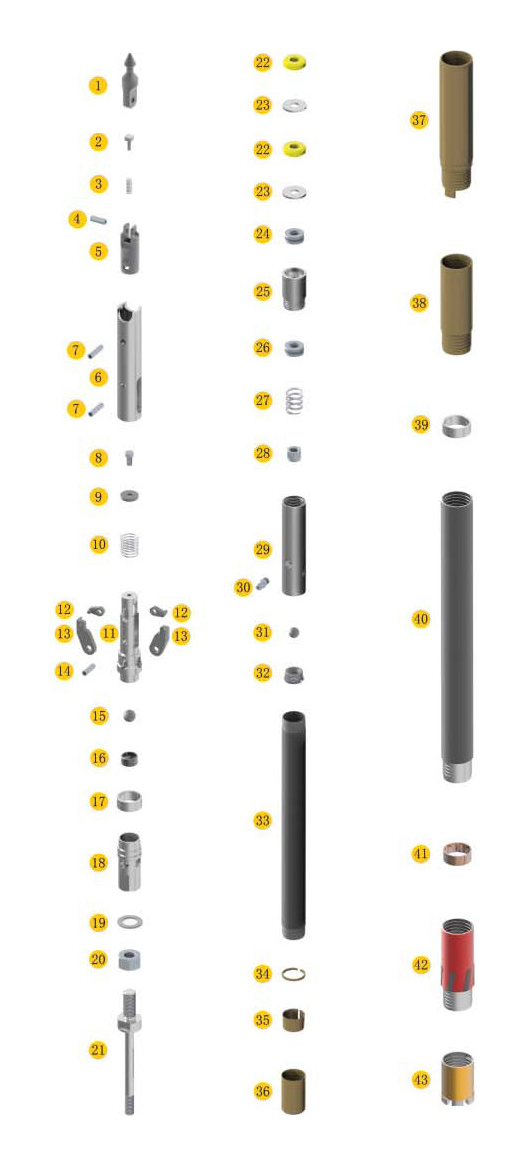

图号 NO.
|
编号
Code
|
名称 Description
|
数量 Qty
|
|
1
|
BTW-01
|
捞矛头 Spearhead Point
|
1
|
|
2
|
BTW-02
|
定位压块 Detent Plunger
|
1
|
|
3
|
BTW-03
|
捞矛头弹簧 Compression Spring
|
1
|
|
4
|
BTW-04
|
弹性圆柱销 10x28 Spring Pin 10x28
|
1
|
|
5
|
BTW-05
|
捞矛座 Spearhead Base
|
1
|
|
6
|
BTW-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
BTW-07
|
弹性圆柱销 10x40 Spring Pin 10x40
|
2
|
|
8
|
BTW-08
|
六角头螺栓 3/8"-16UNCx3/4" Bolt
|
1
|
|
9
|
BTW-09
|
压板 Washer
|
1
|
|
10
|
BTW-10
|
弹卡钳弹簧 Latch Compression Spring
|
1
|
|
11
|
BTW-11
|
弹卡架 Upper Latch Body
|
1
|
|
12
|
BTW-12
|
限位块 Link
|
2
|
|
13
|
BTW-13
|
弹卡钳 Latch
|
2
|
|
14
|
BTW-14
|
弹性圆柱销 10x32 Spring Pin 10x32
|
1
|
|
15
|
BTW-15
|
钢球 φ22 Stainless Steel Ball φ22
|
1
|
|
16
|
BTW-16
|
钢球架 Indicator Bushing
|
1
|
|
17
|
BTW-17
|
悬挂环 Landing Shoulder
|
1
|
|
18
|
BTW-18
|
单向阀 Check Valve Body
|
1
|
|
19
|
BTW-19
|
防松垫圈 7/8" Washer 7/8" Nord-Lock
|
1
|
|
20
|
BTW-20
|
六角螺母 7/8"-9UNC Hex Nut
|
1
|
|
21
|
BTW-21
|
连接轴Spindle
|
1
|
|
22
|
BTW-22
|
报信胶圈Shut-off Valve Hard
|
2
|
|
23
|
BTW-23
|
隔片Valve Adjusting Washer
|
2
|
|
24
|
BTW-24
|
推力轴承Thrust Bearing
|
1
|
|
25
|
BTW-25
|
滑套（轴承座）Spindle Bushing
|
1
|
|
26
|
BTW-26
|
推力轴承Thrust Bearing
|
1
|
|
27
|
BTW-27
|
弹簧Compression Spring
|
1
|
|
28
|
BTW-28
|
自锁螺母5/8"-11UNC Lock Nut
|
1
|
|
29
|
BTW-29
|
弹簧套InnerTube Cap
|
1
|
|
30
|
BTW-30
|
压注油杯Hydraulic Grease Fitting
|
1
|
|
31
|
BTW-31
|
钢球 φ22 Stainless Steel Ball φ22
|
1
|
|
32
|
BTW-32
|
单向阀 Check Valve Body
|
1
|
|
33
|
BTW-33
|
内管 Inner Tube
|
1
|
|
34
|
BTW-34
|
挡圈 Stop Ring
|
1
|
|
35
|
BTW-35
|
卡簧 Core Lifter
|
1
|
|
36
|
BTW-36
|
卡资座 Core Lifter Case
|
1
|
|
37
|
BTW-37
|
弹卡挡头 Locking Coupling
|
1
|
|
38
|
BTW-38
|
弹卡室 Adaptor Coupling
|
1
|
|
39
|
BTW-39
|
座环 Landing Ring
|
1
|
|
40
|
BTW-40
|
外管 OuterTube
|
1
|
|
41
|
BTW-41
|
扶正环 InnerTube Stabilizer
|
1
|
|
42
|
BTW-42
|
扩孔器 Reaming Shell
|
1
|
|
43
|
BTW-43
|
钻头 Diamond Core Bit
|
1
|
