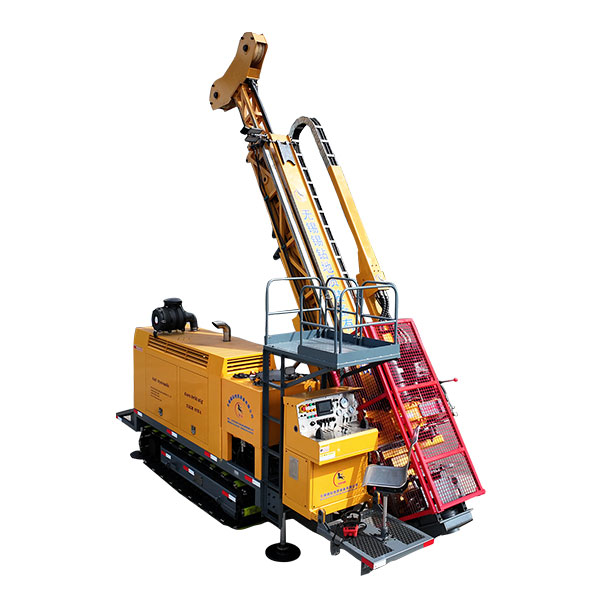

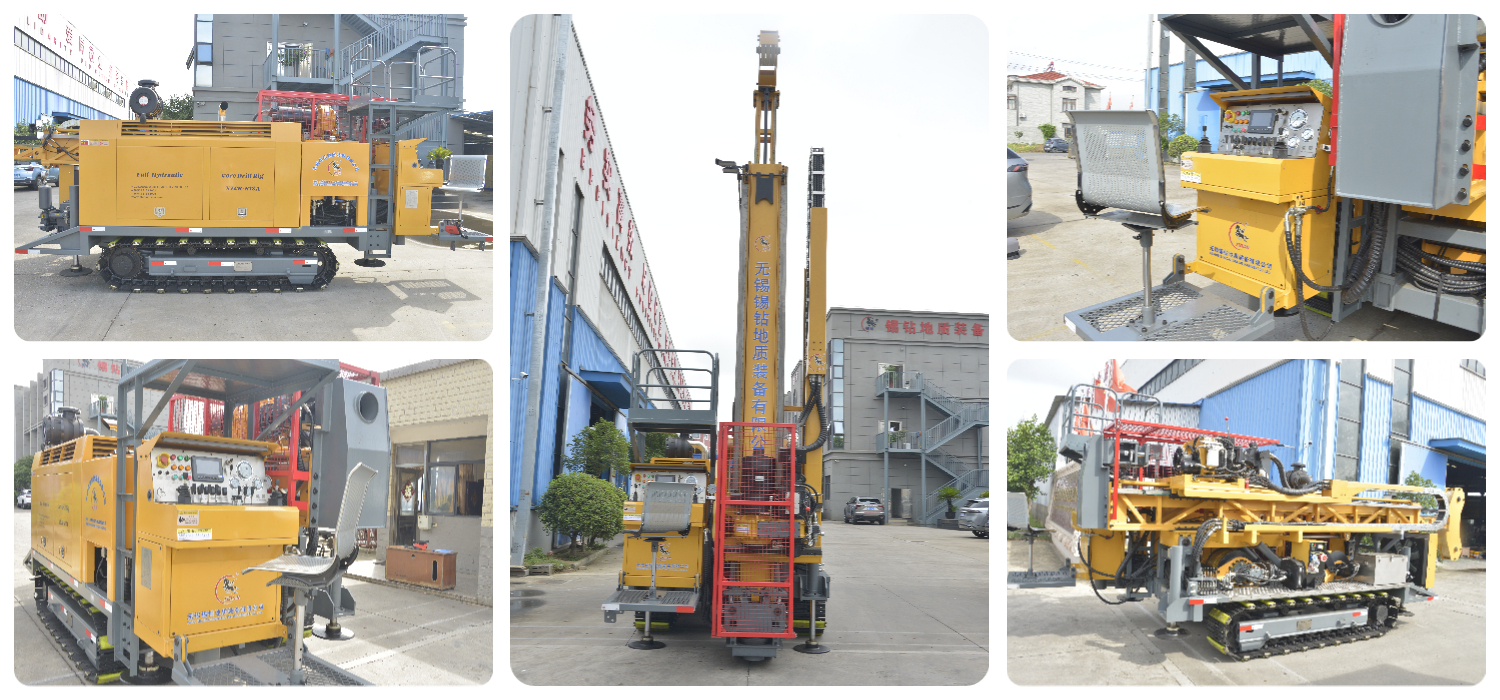

柴油机
Diesel Engine
|
型号Model/排量Displacement
|
WP6G240E330 (EU Stage IIIA)/ 6.7L
|
|
功率Power/转速Rated RPM
|
176 kW (240HP)/ 2200rpm
|
钻进能力
Drilling Capacity
|
BQ
|
2050 m
|
HQ
|
1400m
|
|
NQ
|
1800m
|
PQ
|
1000m
|
动力头
Drill Head
|
旋转马达 Rotation Motor
|
双速液压马达Two-speed Hydraulic Motor
|
|
转速RPM
|
三档变速Three Shifts
转速范围Stepless Change： 0-1250 RPM
|
|
动力头偏移Head Opener
|
600 MM
|
液压卡盘
Hydraulic Chuck(PQ)
|
常闭液压开启，******夹紧保持力243000N
Hydraulically opened
Axial Holding Capacity of 243000 N
|
|
******扭矩Max. Torque
|
6200 N·m
|
|
通孔直径Hold Diameter
|
121 mm
|
|
******起升力Max. Lifting capacity of Spindle
|
235 kN
|
|
******给进力Max. Feeding Power
|
80 kN
|
主卷扬
Capacity of Main Hoist
|
绳速Hoisting Speed (single wire)
|
0-65 m/min(bare drum)
|
|
卷扬拉力Hoisting force (single wire)
|
120 kN
|
|
钢丝绳直径Steel Wire Diameter
|
20-22 mm
|
|
容绳量Steel Wire Length
|
45 m
|
绳索卷扬
Capacity of Wireline Hoist
|
卷扬拉力Hoisting Force (single wire)
|
15 kN(3372 lbf) (bare drum)
|
|
钢丝绳直径Steel Wire Diameter
|
6-8 mm
|
|
容绳量Steel Wire Length
|
2200 m
|
钻机桅杆
Mast
|
桅杆工作高度Mast Height
|
9.5 m
|
|
钻进角度Drilling Angle
|
45º off horizontal to 90ºvertical down
|
|
工作行程Feeding Stroke
|
3700 mm
|
|
桅杆滑移行程Slippage Stroke
|
1000 mm
|
|
起升拉力Feed Pull
|
25 ton
|
|
给进推力Feed Thrust
|
9 ton
|
|
拉起钻杆长度Rod Pull
|
3m or 6m(9.84feet or 19.68feet)
|
|
泥浆泵
|
输出流量Output volume
|
250 L/min
|
|
输出压力Discharge pressure
|
8.0 Mpa
|
|
井口夹持器Foot Clamp
|
夹持范围Clamping Scope
|
55.5-118 mm
through hole Ф165mm
|
其他参数
Others
|
重量Weight
|
10.50 ton
|
尺寸(L × W ×H )
Transport Dimensions
|
5880×2240×2480mm
|
|
底盘形式Transport Way
|
履带式Steel Crawler
|
